船用固定式化學干粉滅火系統

Marine Fixed Dry Chemical Powder Fire Extinguishing System

所屬分類：船用固定式化學干粉滅火系統

概要：滅火裝置由泡沫灌、消防炮、泡沫槍、泡沫噴頭等組成。 Marine fixed dry chemical powder fire-extinguishing system consists of dry powder tank 、nitrogen cylinder groups、dry powder monitor、dry powder gun、dry powder bobbin disk box and etc.

公司郵箱:

產品詳細信息

制造標準/ Manufacturing standards

MSC.1/Circ.1315《經認可的用于保護散裝運輸液化氣體船舶的化學干粉滅火系統指南》

MSC. 1/Circ.1315 Guildines for the Approval of Fixed Dry Chemical Powder Fire-extinguishing Systems for the Protection of Sips Carrying Liquefied Gases in Bulk.

《散裝運輸液化氣體船舶構造與設備規范》（2022）及其變更通告第11章

Chapter 11 of Rules for Construction and Equipment of Ships Carrying Liquefied Gases in Bulk (2022) and its Change Notices.

MSC.370(93)《國際散裝運輸液化氣體船舶構造和設備規則》(IGC規則)及其修正案第11章

MSC.370(93)Chapter 11 of IMO International Code for the Construction and Equipment of Ships Carrying Liquefied Gases in Bulk(IGC Code), and Amended.

適用范圍/ Scope of application

船舶、海上平臺

Ships、Offshore -platform

系統組成/ System composition

滅火系統由干粉罐、氮氣瓶組、干粉炮、干粉槍、干粉卷盤箱等組成

Marine fixed dry chemical powder fire-extinguishing system consists of dry powder tank 、nitrogen cylinder groups、dry powder monitor、dry powder gun、dry powder bobbin disk box and etc.

技術參數/ Technical particulars

名稱/Name	船用固定式化學干粉滅火系統 Marine Fixed Dry Chemical Powder Fire Extinguishing System
型號/Model	ZFPC
工作壓力/Working pressure	1.0-1.6 MPa
干粉罐容積/Dry powder tank volume	500/750/1000/1500/2000/2500/3000/3500/4000/4500/5000-10000kg

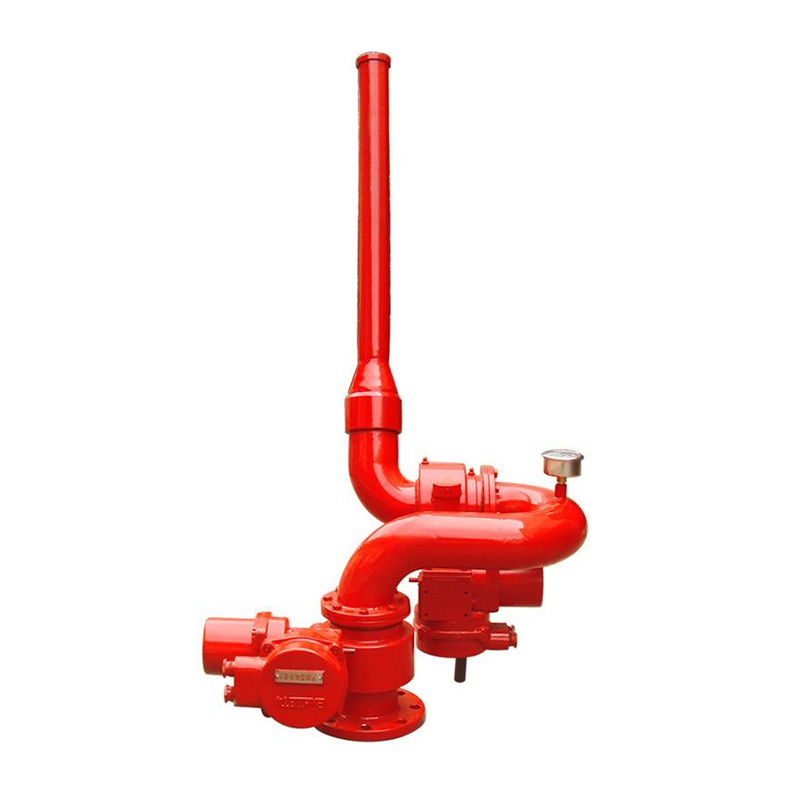

干粉炮噴射率/ Dry powder monitor discharge rate	10/25/35/40/45/50 kg/s

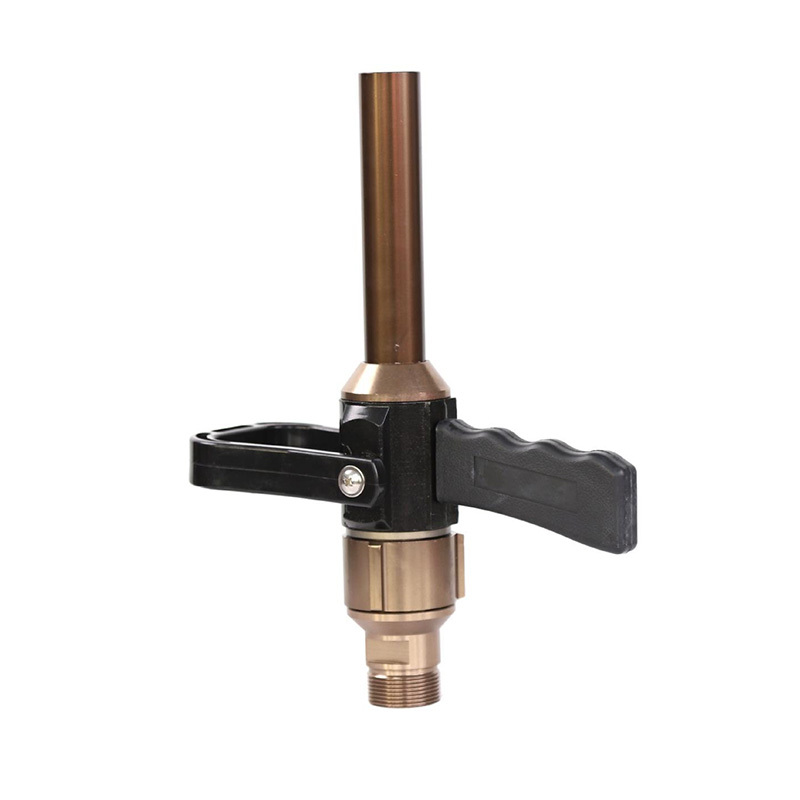

干粉槍噴射率/ Dry powder gun discharge rate	3.5/5 kg/s
開啟方式/Opening ways	手動/Manuai;氣動/Pneumatic;電動/Electric
